Quick Read | Key Points in 30 Seconds

Start with one core idea: a steering gear survey is not just about confirming that the equipment exists. It verifies that the ship can still steer under normal and emergency conditions, with demonstrable timing, pressure, power supply, and isolation capability.

Main steering gear performance The main steering gear must be capable of moving from 35° on one side to 35° on the other side; the timing criterion is 35° on either side to 30° on the other side within 28 seconds.SOLAS II-1/29.3.2LR Pt 5 Ch 19/7.2
Emergency steering is not low-power movement Emergency power supply and power unit arrangements must meet the required steering capability. Dual-winding, dual-rating arrangements are not acceptable.SOLAS II-1/29.6.1SOLAS II-1/30.2
Tankers depend on redundancy and isolation For oil tankers, chemical tankers, and gas carriers, interconnected systems, automatic isolation, and recovery of steering after failure should be checked as distinct requirements; compliance cannot be judged by the number of pumps or power units alone.SOLAS II-1/29.16.2.2SOLAS II-1/29.17IACS UI SC94
On-site checks focus on installation quality Keyless tiller contact, rudder jumping clearance, foundation securing, hydraulic leakage, pipe supports, and drill records all affect the survey conclusion.

1. Note Subject and Background

The purpose of this note is to explain how a ship's steering gear is surveyed, tested, verified, and documented under the LR Rules and SOLAS.

Source Type How It Is Used in This Note Chapter / Document Reference
SOLAS steering gear requirements Main steering gear performance, auxiliary / emergency steering capability, and tanker steering gear arrangements. Chapter II-1, Part C, Regulation 29. Sea trial conditions are in 29.3.2; exemption from auxiliary steering gear with two power units is in 29.6.1; alternative power supply is in 29.14; oil tanker, chemical tanker, and gas carrier arrangements are in 29.16-17.
SOLAS alternative power and drills Alternative power supply for steering gear, pre-departure steering gear tests, emergency steering drills, and records. Alternative power supply is in Chapter II-1/29.14; one steering gear circuit may be supplied through the emergency switchboard under Chapter II-1/30.2; pre-departure testing and drill records are in Chapter V/26.
LR Rules Steering gear arrangements, components, power units, sea trials, and test requirements. LR Rules for Ships Pt 5, Ch 19. Common references include 2.1.4, 3.2, 5.1.6, 6.1, and 7.2.
IACS / IMO references Control system independence, non-traditional propulsion / steering arrangements, and heading information at the emergency steering position. IACS UI SC94, IACS UI SC242, IMO MSC.1/Circ.1416/Rev.1, and IACS Rec.16; for small or special service craft, also refer to LR Special Service Craft Pt 14. SOLAS V/19.2 is relevant when discussing heading information available at the emergency steering position.
Survey Procedures Manual Installation, sea trials, periodical surveys, certification, and reporting procedures in this note. Survey Procedures Manual - Surveyable Items - Steering Gear. This note organizes content from the introduction, survey scope, survey prerequisites, first entry, certification, and documentation sections.
Note Positioning

This note is not merely a design-rule summary. It organizes survey procedure requirements used by surveyors, shipyards, manufacturers, and ship staff. The focus is not whether steering gear exists, but whether it retains reliable steering capability under normal and emergency conditions.

Use Case Main Content Practical Focus
Maker component and equipment survey Check materials, certificates, components, and test arrangements. Confirm that the steering gear complies with class requirements before delivery.
New construction maker survey Check steering gear manufacture, assembly, and testing. Focus on certificates, stamping, component compliance, and manufacturing quality.
New construction yard installation survey Check foundations, alignment, push-up fitting, securing, and functional tests. Installation quality directly affects sea trials and service reliability.
Existing ship periodical survey Check leakage, wear, hoses, piping, and steering drill records. The focus shifts to ageing, damage, and functional retention in service.
Condition survey Assess the current condition of an existing ship or installation. Describe the steering gear type, hard-over test, and correctness of rudder angle indication.
Regulatory Reminder

SOLAS, IMO Circulars, LR Rules, IACS UIs, and flag Administration requirements may be updated. For actual design, class approval, PSC inspection, or regulatory application, always refer to the latest official documents, Administration instructions, and formal class rules or approval comments.

2. Note Structure

This note follows the steering gear survey process across the equipment life cycle: from rule basis, plan submission, and maker survey to yard installation, sea trial verification, and periodical survey of existing ships.

1
Introduction Explains applicable procedures, emergency steering capability, dual power units, and unacceptable dual-winding / dual-rating arrangements.
2
Rules, Regulations and Other Requirements Lists LR Rules, SOLAS, IACS UIs, and related reference documents.
3
Submission of Plans Requires drawings, specifications, and inspection and test plans, including flag statutory requirements.
4
Scope and Conduct of Survey Covers rudder jumping clearance, actuator sealing, keyless tillers, sea trials, and existing ship surveys.
5
Certification, Documentation and Reporting Explains fitting curves, sea trial reports, defect handling, and conditional certificate requirements.

3. Core Content

1. Emergency Steering Capability and Power Unit Arrangement

The SPM specifically addresses the alternative power supply for steering gear. If a ship is fitted with two or more identical power units, a separate auxiliary steering gear may not be required under specified conditions. LR Pt 5 Ch 19/2.1.4SOLAS II-1/29.6.1

Standard Interpretation

Where the required rudder stock diameter at the tiller exceeds 230 mm, excluding strengthening for navigation in ice, an alternative power supply is required. It should automatically supply, within 45 seconds, at least one steering gear power unit, its control system, and the rudder angle indicator, with performance equivalent to the auxiliary steering gear requirement. The source may be the ship's emergency source of electrical power or an independent source located in the steering gear compartment. Capacity should be at least 30 minutes for ships of 10,000 GT and above, and at least 10 minutes for other ships. SOLAS II-1/29.14LR Pt 5 Ch 19/5.1.6SOLAS II-1/30.2

Unacceptable Design

The SPM clearly states that a steering gear power unit with two windings and dual rating is not acceptable. If it changes to a lower rating during an emergency such as a blackout, it may fail to meet the auxiliary steering capability requirement. SOLAS II-1/29LR Pt 5 Ch 19/6.1

2. Ship Types and Steering Gear Arrangements

The Expected arrangements table (Table 2.2) in the SPM is a key reference, summarizing performance and redundancy requirements for cargo ships, tankers, and different steering gear arrangements.

Ship Type Steering Gear Arrangement Power Units Performance Practical Notes
Cargo Ship Main steering gear + auxiliary steering gear One or more Main steering gear capability: 35°→35°; timing criterion: 35°→30° / ≤28 s. Auxiliary steering gear: 15°→15° / ≤60 s. The SPM notes that this arrangement is now less common.
Cargo Ships One steering gear with two or more power units Two or more All power units together achieve main steering gear capability: 35°→35°; timing criterion: 35°→30° / ≤28 s. Very common.
Oil tankers, chemical tankers, and gas carriers of 10,000 GT and above Two independent power actuating systems Two or more identical units Each system must achieve main steering gear capability: 35°→35°; timing criterion: 35°→30° / ≤28 s. Strict requirement, but the SPM notes that it is less common.
Oil tankers, chemical tankers, and gas carriers of 10,000 GT and above Two interconnected systems with automatic isolation Two or more identical units All power units together achieve main steering gear capability: 35°→35°; timing criterion: 35°→30° / ≤28 s. Common arrangement; the key point is automatic isolation.
Oil tankers, chemical tankers, and gas carriers of 10,000 GT and above but less than 100,000 DWT SOLAS II-1/29.17 equivalent safety arrangement Two or more identical units All power units together achieve main steering gear capability: 35°→35°; timing criterion: 35°→30° / ≤28 s. This is a SOLAS II-1/29.17 equivalent safety arrangement; the key point is recovering steering within 45 seconds after a single piping or power unit failure.
Technical Logic

Steering gear safety is not judged by the number of installed components alone. It must be confirmed that the ship can retain sufficient manoeuvring capability during failure, isolation, power loss, or hydraulic abnormality. For oil tankers, chemical tankers, and gas carriers, two ideas should be kept separate: SOLAS II-1/29.16.2.2 addresses automatic isolation of a failed section in an interconnected hydraulic power actuating system, with steering capability maintained or rapidly restored; SOLAS II-1/29.17 is an equivalent safety arrangement for ships of 10,000 GT and above but less than 100,000 DWT, and should not be merged with the former requirement. SOLAS II-1/29.16.2.2SOLAS II-1/29.17

4. Performance Requirements and Key Figures

35°
Starting rudder angle
Start from 35° on either side
30°
Timing target angle
Move to 30° on the other side
65°
Total rudder angle
35° + 30°
28 sec
Main steering gear limit
Time not to exceed 28 seconds
Main steering gear capability: 35° on one side → 35° on the other side; timing criterion: 35° on either side → 30° on the other side; time ≤ 28 seconds SOLAS II-1/29.3.2
Sea Trial Conditions and Alternative Verification

The SPM cites SOLAS requirements: steering gear tests should generally be carried out at the ship's deepest seagoing draught and maximum ahead service speed. If this cannot be demonstrated during sea trials, alternative verification may be accepted to the satisfaction of the Administration. LR Rules place the trial requirement under Rules for Ships Pt 5, Ch 19, 7.2 Trials. SOLAS II-1/29.3.2LR Pt 5 Ch 19/7.2

System Performance Verification Purpose
Main Steering Gear At deepest seagoing draught and maximum ahead service speed, the main steering gear must move the rudder from 35° on one side to 35° on the other side; the timing criterion is 35° on either side to 30° on the other side within 28 seconds. Verify steering capability under normal maximum service conditions.
Auxiliary Steering Gear At deepest seagoing draught, with the ship running at one half of maximum ahead service speed or 7 kn, whichever is greater, it must move the rudder from 15° on one side to 15° on the other side within 60 seconds. Verify that basic manoeuvring capability remains after main steering gear failure.
Relief Valve The maximum working pressure during sea trials should not exceed 80% of the set pressure. Avoid normal steering operation approaching relief-valve opening conditions.
Common Mistake

The main steering gear has two layers of requirement: capability to move from 35° on one side to 35° on the other side, and the timing criterion of 35° to 30° on the other side within 28 seconds. Do not read the timing angle as meaning that the steering gear only has to reach 30°.

5. Installation, Fitting, and Sea Trials

1. Rudder Jumping Clearance

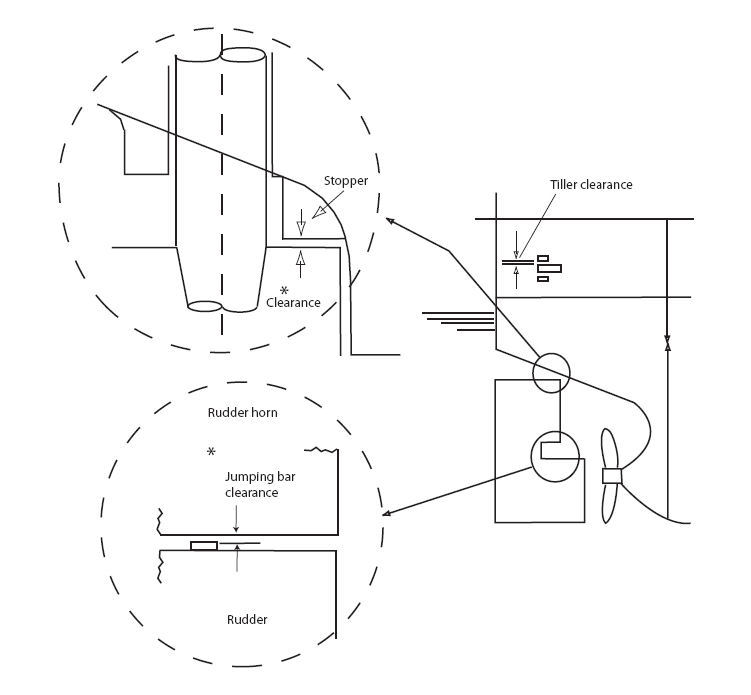

The rudder jumping clearance illustration in the SPM explains that, to prevent steering gear damage when the rudder jumps upward, the rudder lift / tiller clearance must be greater than the clearance between the rudder and the fixed anti-jump arrangement.

Rudder jumping clearance and anti-jump arrangement clearance diagram
Rudder jumping clearance and anti-jump arrangement clearance. Source: LR Survey Procedures Manual.
Steering gear clearance > rudder-to-anti-jump clearance

The engineering meaning is that when the rudder jumps upward due to external force, sea conditions, or vertical movement, the fixed anti-jump arrangement should limit the movement first, rather than transmitting impact directly to the tiller, rudder stock, or steering gear itself.

Actuator Sealing and Component Requirements

The SPM also notes that sealing arrangements for certain oscillating piston actuators should be checked against the applicable rules. As a general principle, moving pressure-boundary oil seals forming an external pressure boundary should be duplicated, or an equivalent leakage-prevention arrangement accepted by the Administration / classification society should be provided. A specific oscillating piston actuator sealing arrangement may be accepted as an equivalent arrangement, but a single pressure seal plus wiper seal should not be stated as a universal rule. Component surveys should also confirm that stamping and certificates comply with the rules. LR Pt 5 Ch 19/3.2

2. Ram Type Steering Gear | Installation Flow

The installation and testing flow in the SPM shows a typical ram type steering gear installation and test sequence, which can be used as a yard site checklist. The shipyard / manufacturer should also check the warning plate on the tiller top; it should state the approved maximum fitting pressure, which must not be exceeded during installation.

1
Cone Contact Check

Check the contact condition between the upper rudder stock cone and the tiller.

2
Foundation Assembly

Fabricate the steering gear foundation assembly.

3
Rudder Stock Push Fitting

Carry out rudder stock push fitting to the tiller.

4
Nut and Locking Device

Install the rudder stock nut and locking tab.

5
Pump, Cylinder, and Ram Alignment

Use the rudder stock as the datum for alignment.

6
Chocking and Securing

Carry out chocking, resin chocking, hardness checks, and holding-down bolt checks.

7
Quay Functional Test

Confirm relief valves, automatic isolation, alarms, and control functions.

8
Sea Trial

Verify steering efficiency, rudder movement time, pressure, leakage, and emergency functions.

9
Submit Sea Trial Data

Complete the First Entry Report and Sea Trials Data.

3. Sea Trials | Survey Focus

Steering gear sea trials do not only measure rudder movement time. They also verify hydraulic integrity, control reliability, redundancy and isolation, alternative / emergency power supply, communication, and indication systems.

Record ship draught.
Record the time from 35° to 30° on the other side.
Record the maximum hydraulic pressure during sea trials.
Confirm no leakage from steering rams, pump glands, and valve stems.
Confirm piping and cable supports are satisfactory, with no excessive vibration.
Confirm the hydraulic oil header tank level is maintained.
Confirm one power actuating system can be isolated from the other.
Confirm relief valves do not lift continuously or abnormally.
Confirm alternative / emergency steering power supply changeover and operation.
Confirm anti-hydraulic lock function.
Confirm communication between the steering gear compartment and the bridge.
Where fitted, confirm that heading information at the emergency steering position agrees with the bridge heading.

6. Periodical Survey of Existing Ships

For existing ships, the survey focus shifts from design and installation compliance during new construction to ageing, wear, leakage, support, functional testing, and record verification.

Inspection Scope Main Check Items Risk Implication
Steering gear compartment access Check mechanical parts, handrails, and non-slip surfaces. Affects maintenance and emergency operation safety.
Hydraulic piping Check cracks, flange connections, stress concentration, and insufficient support. Vibration may cause fatigue cracks and leakage.
Flexible hoses Check damage and date markings; renew if necessary. Aged hoses may burst during high-pressure steering operation.
Mechanical linkages and securing Check pins, securing arrangements, and holding-down arrangements. Looseness or wear may cause inaccurate control or structural failure.
Functional tests Test main steering gear, auxiliary steering gear, emergency steering gear, and telemotor gear. Confirm the system still meets steering function requirements.
Steering drill records Check SOLAS V/26 steering gear test and emergency steering drill records, including dates and drill details. Deficiencies may affect statutory survey and PSC inspection results.
Existing ship caution notices Under the relevant SOLAS 1986 existing-ship requirements or IACS UR M42, where two power units running simultaneously may cause hydraulic locking or no response to steering commands, confirm that a caution notice is posted at the bridge steering control position, as applicable. When control abnormalities occur, crew need to know how to stop pumps one by one to restore steering command control.
Telemotor / auxiliary or emergency steering Test telemotor gear where fitted; auxiliary or emergency steering systems, where provided, should also be tested. Avoid a steering chain outside the main system being unavailable during a real emergency.
Additional Source Note for Periodical Survey

The SPM places functional testing of existing ships, drill records, caution notices, telemotor gear, and auxiliary / emergency steering tests under Scope and Conduct of Survey 5.1.6 to 5.1.10. Pre-departure steering gear tests, emergency steering drills, and record requirements should refer to SOLAS Chapter V Regulation 26: within 12 hours before departure, the main steering gear, auxiliary steering gear, remote control systems, bridge steering positions, alternative / emergency power supply, rudder angle indicators, failure alarms, and automatic isolating arrangements should be tested; emergency steering drills should be carried out at least every three months, with dates and details recorded. SOLAS V/19.2 is relevant only when discussing heading information available at the emergency steering position. Where a Chief Engineer self-inspection arrangement is used, the SPM lists only steering gear pumps as items that may be checked by the Chief Engineer; other steering gear surveyable items are outside that scope. SOLAS V/26SOLAS V/19.2

Special Equipment: Azimuth Thruster

If the ship is fitted with azimuth thrusters, their steering systems should be checked together with the propulsion system survey, with particular attention to pinions, wheel rims, tooth wear, and tooth flank surface degradation.

Performance Verification for Non-Traditional Steering Systems

The conventional 35° / 30° / 28-second requirement is mainly written for traditional rudder steering systems. For azimuthing propulsors, waterjets, or other non-traditional steering systems, verification should follow the unified interpretations in IMO MSC.1/Circ.1416/Rev.1 and IACS UI SC242, using declared steering angle limits, average turning rate, and equivalent steering capability rather than directly applying the traditional rudder angle standard in full.

Special Equipment: Rotary Vane Steering Gear

Some rotary vane steering gear seals are prone to wear. If the surveyor suspects that the steering gear no longer satisfies SOLAS Regulation 29 and applicable class requirements, the owner or operator should contact the manufacturer for further advice. SOLAS II-1/29

Notes on A.E.G. Type Rotary Vane Steering Gear

The SPM recommends not opening the vane unit outside factory conditions. If opening is unavoidable, strict precautions are needed to prevent contamination of the hydraulic system. If the unit cannot be sent to the factory, temporary screening should be arranged on site to make cleanliness as close as practicable to factory conditions. Periodical checks of A.E.G. type rotary vane steering gear also include an Engine Survey / CSM interval not exceeding 5 years, an approximately 7 bar pressure limit during hard-over operation, hard-over to hard-over time, and relief valve lifting pressure.

7. Technical and Regulatory Implications

1. Steering gear is both a class and statutory item

The SPM refers to LR Rules, SOLAS, and IACS documents, showing that steering gear is safety-critical equipment. Steering gear failure may affect both class certificates and statutory safety certificates. LR Pt 5 Ch 19SOLAS II-1/29IACS UI SC94

2. Performance verification matters more than equipment count

Two pumps or two power units do not automatically mean compliance. It must be demonstrated that, under the specified draught, speed, power, and failure conditions, the steering gear can still meet the required rudder movement time and steering capability.

3. Redundant systems must avoid common-cause failure

Oil tanker, chemical tanker, gas carrier, interconnected-system, automatic-isolation, and existing-ship caution notice requirements all show that steering gear redundancy must avoid common-cause failure, such as shared hydraulic contamination, control conflict, or failed isolation. IACS UI SC94IACS UI SC242

4. Installation quality directly affects reliability

Keyless tiller contact, rudder stock push-up, foundation welding, resin chocking, holding-down bolts, alignment, and pipe supports all affect steering gear reliability under high load, high vibration, and rapid steering conditions.

8. Common Pitfalls and Points to Watch

Potential Confusion Correct Understanding Practical Risk
Do two pumps automatically mean compliance? Not necessarily. Performance, isolation, power supply, and control redundancy still need to be confirmed. The equipment count may be sufficient, but steering may still be unavailable in an emergency.
Main steering gear test angle The main steering gear must be capable of 35° to 35°; the 28-second timing criterion is 35° to 30° on the other side. If capability and timing are mixed together, sea trial records or exam answers are easily written incorrectly.
Dual-winding, dual-rating design The SPM clearly states that it is not acceptable. Output may be insufficient in an emergency and fail to meet auxiliary steering requirements.
Relief valve set pressure It is not the normal working pressure. Maximum sea trial working pressure should not exceed 80% of it. Frequent relief valve lifting may indicate design or adjustment problems.
Engineer's blue contact check It should be thin and even, not mixed with oil, and applied using a roller. Applying it too thickly may produce false contact readings.
Opening rotary vane steering gear It should not be opened casually outside factory conditions. Hydraulic contamination may cause valve sticking, pump wear, and seal damage.

9. Summary and Review Points

Steering gear is safety-critical equipment governed by both class and SOLAS statutory requirements.
The main steering gear must be capable of 35° on one side to 35° on the other side; the timing criterion is 35° to 30° on the other side within 28 seconds.
Auxiliary or emergency steering capability cannot be merely low-power movement; auxiliary steering gear must achieve 15° to 15° within 60 seconds at half speed or 7 kn, whichever is greater.
Dual-winding, dual-rating steering gear power units are not acceptable.
Oil tanker, chemical tanker, and gas carrier steering arrangements should distinguish the automatic isolation requirement in 29.16 from the equivalent safety arrangement in 29.17.
Rudder jumping clearance should ensure that the anti-jump arrangement takes upward rudder movement before the steering gear itself.
Keyless tiller contact should reach 80-90%, and engineer's blue application affects interpretation.
Sea trials should confirm rudder movement time, pressure, leakage, isolation, make-up oil system, alternative / emergency power supply, control positions, communication, alarms, and anti-hydraulic-locking arrangement.
Existing ship surveys focus on leakage, wear, hose age, pipe cracks, securing arrangements, and SOLAS V/26 drill records.
Major defects in the main or auxiliary steering gear may lead to conditional safety certificates.
One-Sentence Summary

This note organizes the class survey logic for steering gear from manufacture, installation, and sea trials to in-service surveys. Its core purpose is to help readers understand how to confirm that a ship has reliable and verifiable steering capability under both normal and emergency conditions.

Certification, Reporting, and Defect Handling

After sea trials, the SPM requires submission of the Report on Installation of Machinery, Form 2095 under First Entry Procedures. During new construction, the fitting curve should be available on board. If a statutory survey finds that the main or auxiliary steering gear cannot operate properly and permanent repair cannot be completed at the survey port, a conditional Safety Construction Certificate, conditional Cargo Ship Safety Certificate, or conditional Passenger Ship Safety Certificate may be required.

This article is a learning and survey note. Practical design, class approval, PSC inspection, or regulatory application should still be based on the latest SOLAS, IMO Circulars, flag Administration requirements, and formal classification society rules.
